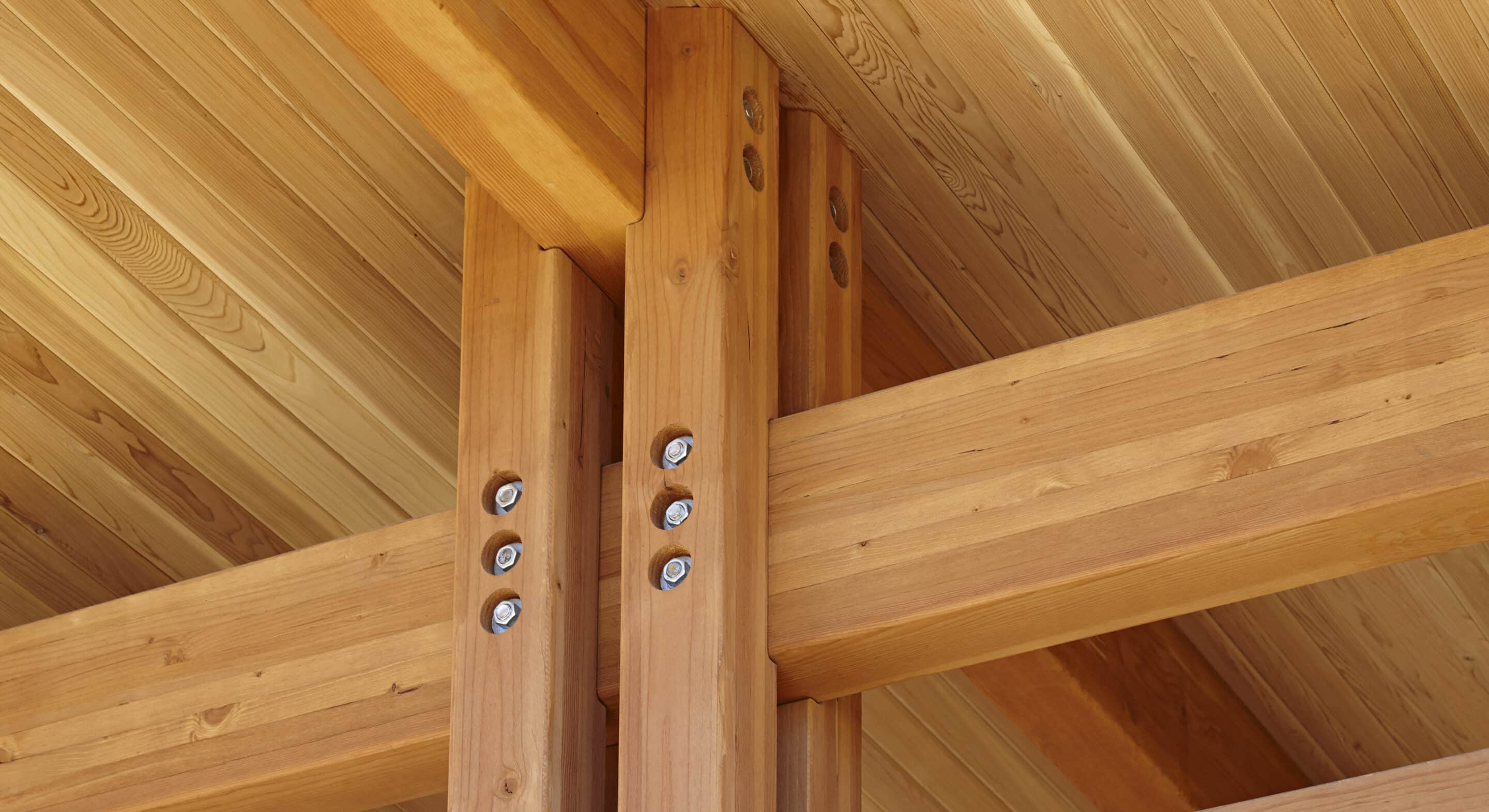

Rosboro X-Beam™ Glulam Columns
The most cost-effective installed engineered wood option on the market today.
- 3½″ x 4 ½″
- 3½″ x 6″
- 5½″ x 5½″
- 5½″ x 6″
- 6¾” x 7½”
- Surfaced on four sides and eased on all four edges. Ready for virtually any application.
- Same column material can be used for the horizontal framing in tall wall construction.
- Allows builders to run framing from floor to ceiling with one continuous piece.
X-Beam Columns Design Value Table
Rosboro X-Beam™ Columns Design Values
| Layup Combination | Bending about Y-Y Axis | Bending about X-X Axis | Compression Parallel to Grain | MOE (106 psi) | ||
|---|---|---|---|---|---|---|
| Fby (psi)1 | Fbx (psi)2 | Fc (psi)3 | EApparent | ETrue | Emin4 | |
| Comb. 3 DF | 2,100 | 2,000 | 2,300 | 1.9 | 2.0 | 1.0 |
