There Is No Substitute
Rosboro is the only stock glulam manufacturer in the nation with a proprietary ICC ESR Report that includes the City of LA Supplement. This ensures that ALL Rosboro Products, including X-Beam 2.0E (24F-V4-2.0Etrue), are codified and accepted for use in all US jurisdictions.
X-Beam 2.0E Widths
3½” • 5½” • 6¾” • 8¾”
X-Beam Depths
Conventional depths 6” to 24” in 1½” increments
I-Joist compatible depths 9½” • 11⅞” • 14” • 16” • 18”

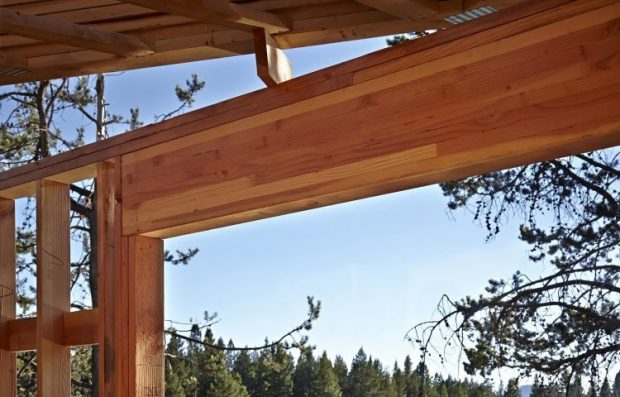

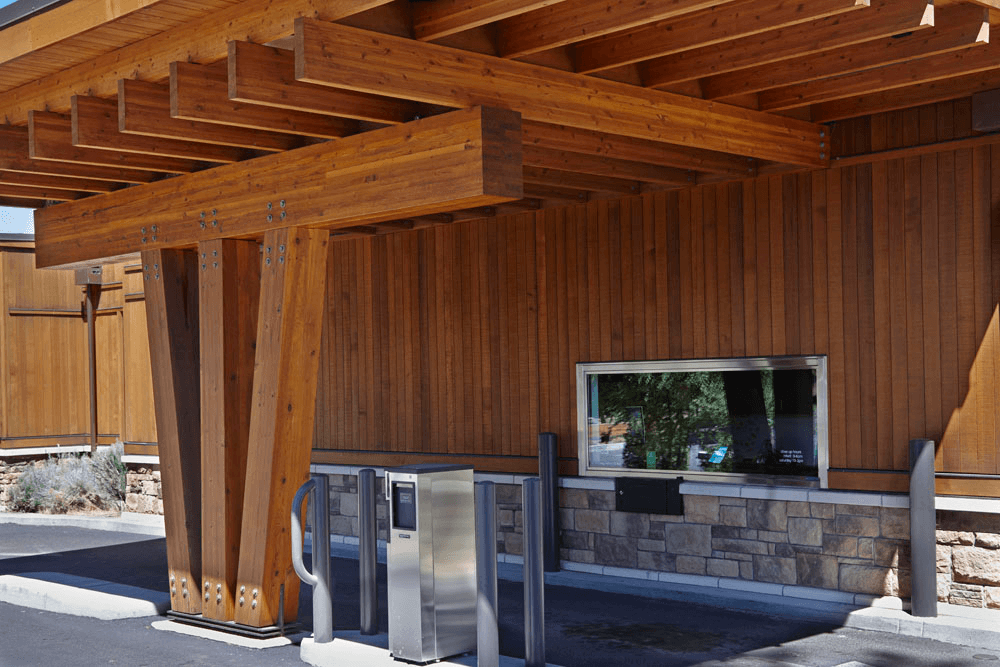

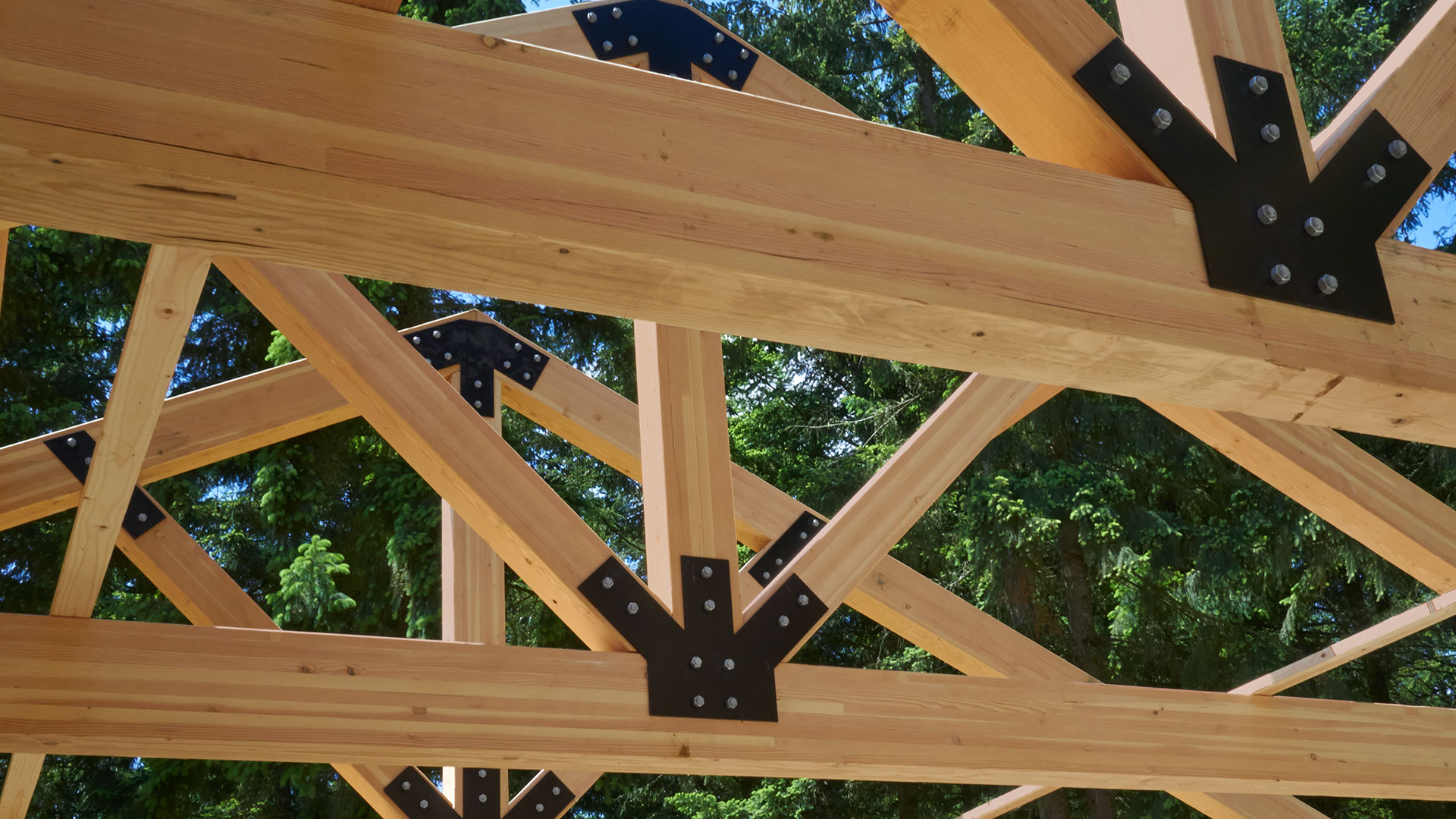

- Architectural appearance makes it ready for exposed applications
- Matches standard framing dimensions
- Single-piece installation

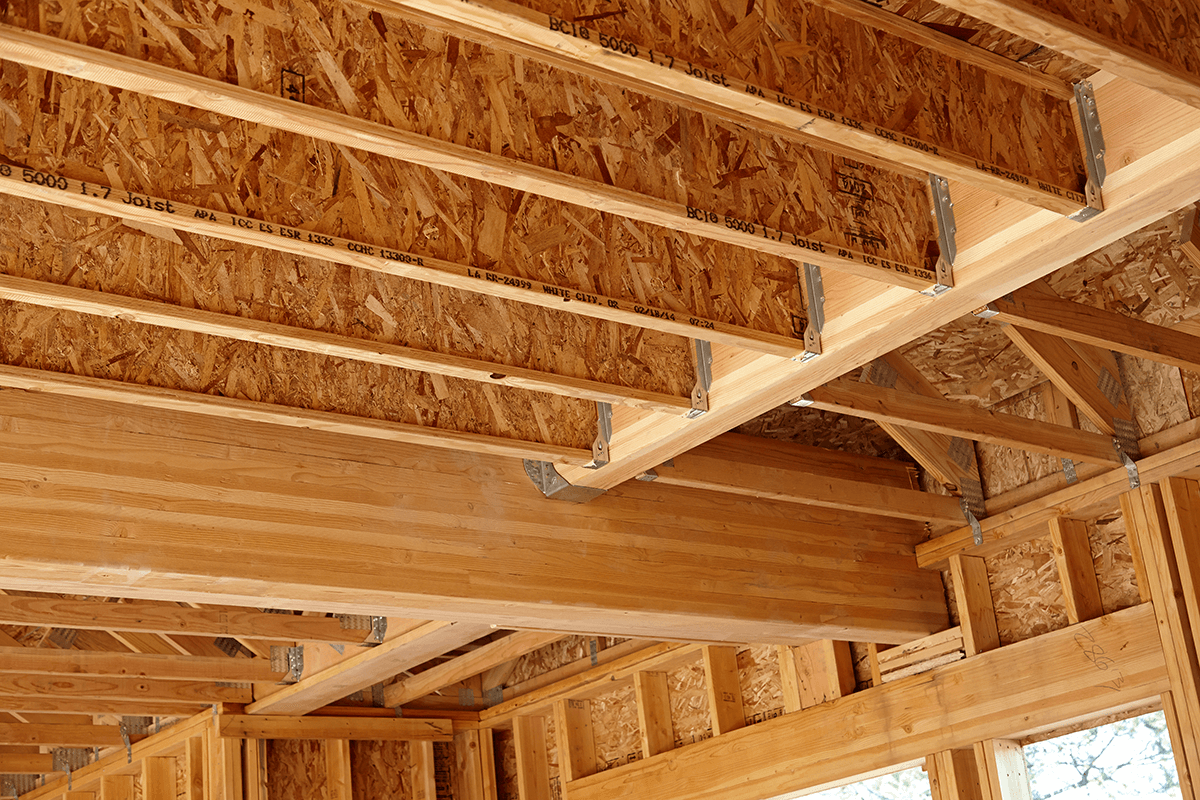

- Compatible with I-Joist and traditional depths
- Made from renewable second and third growth resources
- Longer span capacity than any other 24F-V4 Douglas Fir stock glulam

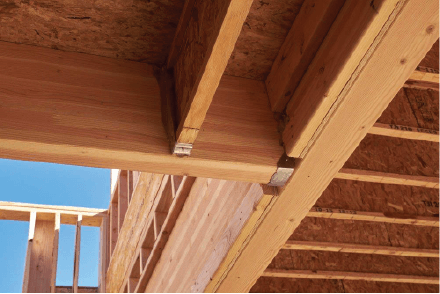

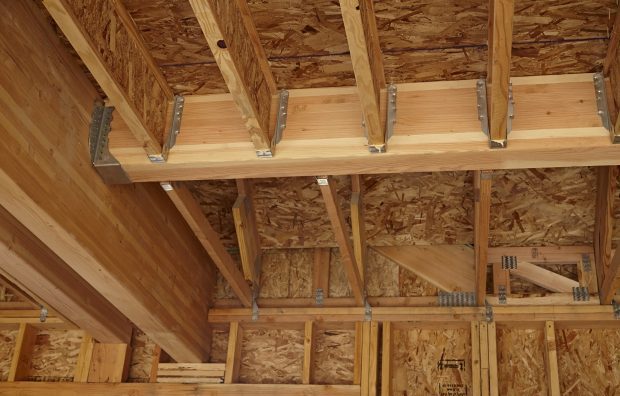

- Uses readily available timber hangers, not more costly 1/8” hangers
- Inventoried locally at most reputable distributors for immediate shipment
X-Beam 2.0E Design Value Table
Rosboro X-Beam® 2.0E Design Values
| Product | Layup Combination | Bending Fb (psi) | Comp Perp to Grain Fc⊥ (psi) |
Shear Fv (psi) |
MOE (106 psi) | ||
|---|---|---|---|---|---|---|---|
| Tension Zone | Compression Zone | Apparent | TRUE | ||||
| X-Beam® 2.0E | 24F-V4-2.0ETRUE | 2400 | 1850 | 650 | 265 | 1.9 | 2.0 |
Trust in the Stamp
X-Beam’s internally produced, proprietary laminating stock is continually tested and rated to give you confidence that it will carry the load. Compliance is stamped on every beam.
